433 remote control

433 remote control

tsananguro pfupi:

Kushanda voltage: 12V

Kunofambira mberi kushanda kwazvino: ≤6mA

Kushanda tembiricha: -40 ° C - + 80 ° C

Kugamuchira kutendeseka: ≥-105dBm

Kushanda frequency: 315MHz, 433MHz

Kubuda kwemagetsi: AC uye DC inosarudzika

Kubuda kwazvino: ≤3A


Chigadzirwa Chigadzirwa

Chigadzirwa Mateki

Nhanhatu-chiteshi yakatarwa kodhi kure kudzora:

Iyo nhanhatu-chiteshi isina waya ine hungwaru inogamuchira controller inoburitsa switch switch kune iwo matanhatu ma relays, ayo anogona kugonesa iyo michina kudzorwa kuti ibudirire kumberi uye kudzosera kutenderera kwemota; kana switch yacho inogona kubatidzwa uye kudzimwa, pamwe neakasiyana maitiro ekudzora maitiro. Inonyanya kushandiswa mumasuo emagetsi, mahwindo, michina yekusimudza, magedhi, maelevhi, kutonga kwemaindasitiri uye maindasitiri ekuchengetedza uye mamwe minda.

Main Magadzirirwo:

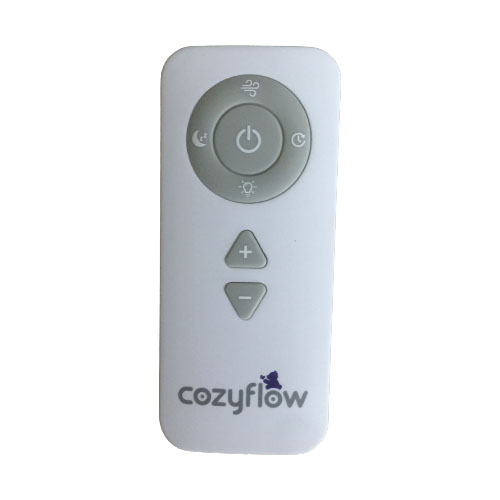

5007-1

Kushanda voltage: 12V

Kunofambira mberi kushanda kwazvino: ≤6mA

Kushanda tembiricha: -40 ° C - + 80 ° C

Kugamuchira kutendeseka: ≥-105dBm

Kushanda frequency: 315MHz, 433MHz

Kubuda kwemagetsi: AC uye DC inosarudzika

Kubuda kwazvino: ≤3A

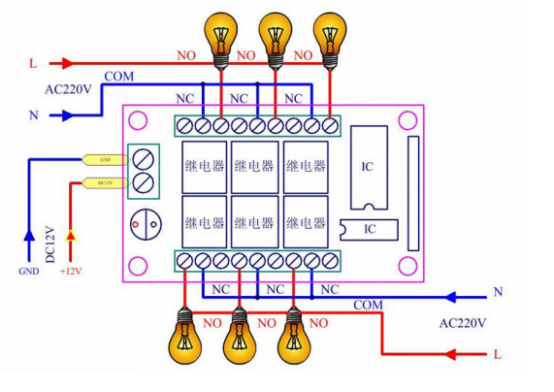

Wiring dhayagiramu:

Wiring diagram

Pairing ruzivo:

1. Dhinda uye bata bata bhatani rekudzidza pane rinodzora pani (rinogamuchira) kwemasekonzi mashanu, mwenje wechiedza unogara uripo kuti upinde munharaunda yekudzidza.

2. Dhinda bhatani reRC kutumira iro basa kodhi yekuraira kunogamuchira, chiratidzo chemwenje chinopenya uye chinobuda panguva ino, ipapo pairing yapera.

Dhinda mabhatani akateerana akasiyana kuti uwane akasiyana anoshanda modhi, tora iyo nyowani sampuro yekudzivirira kure semuenzaniso:

Dhinda pikicha yeNha. 1 yeiyo yakazara jog modhi. Ndokunge, ese 1-6 ma relays ari mujog anoshanda mamiriro.

Dhinda bhatani Nha. 2 bhatani rakazara rekupindira mode, ndiko kuti, ese anodzorera 1-6 ari mune yekuzvikiyira-yega maitiro.

Dhinda pikicha Nha. Ndokunge, ese 1-6 anodzoreredza ari mune akapindirana anoshanda mamiriro.

Dhinda nha.

Dhinda iyo Nha. 5 kiyi ye3 yekuzvivharira uye 3 nzira yekupindirana, ndiko kuti, kudzosera 1-3 vari mujog modhi, uye inodzosera 4-6 iri mune yekuvhara nzira.

Dhinda pikicha yeNha.

DT006

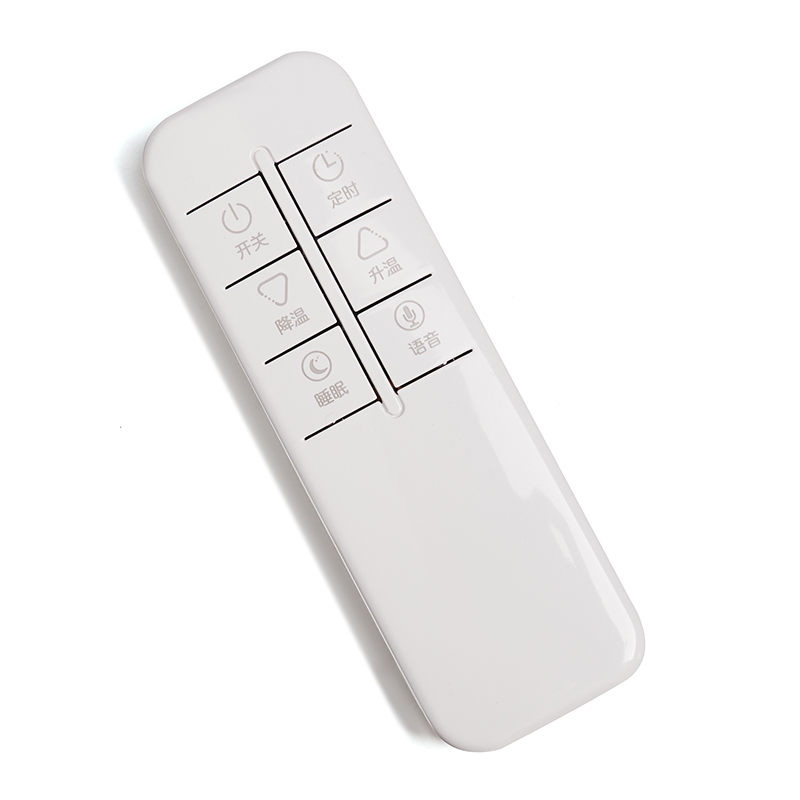

DT006B-2

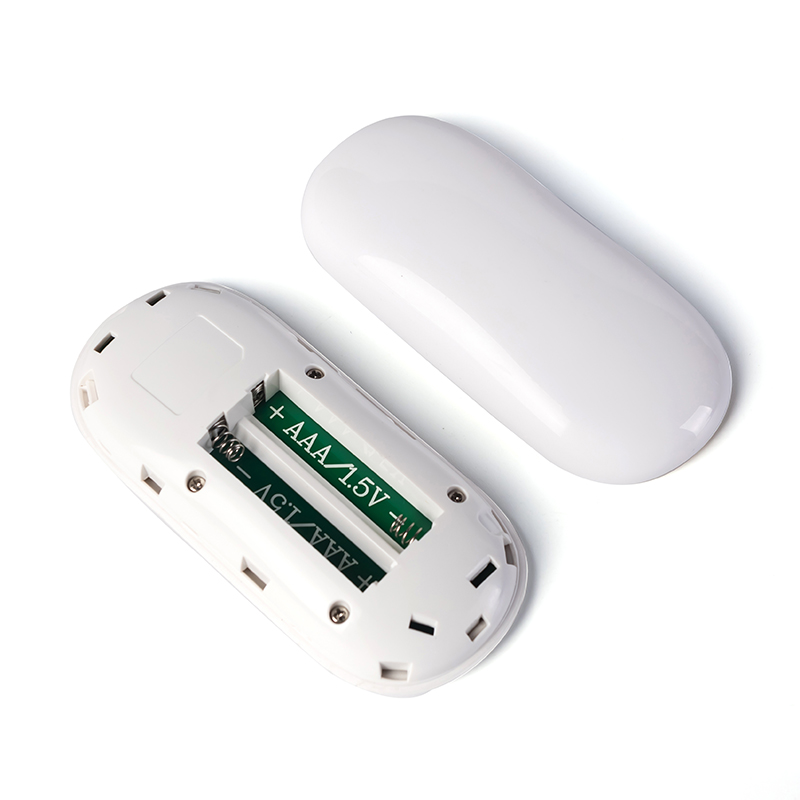

DT006B-3
DT006B-4

DT006B

DT006B-2

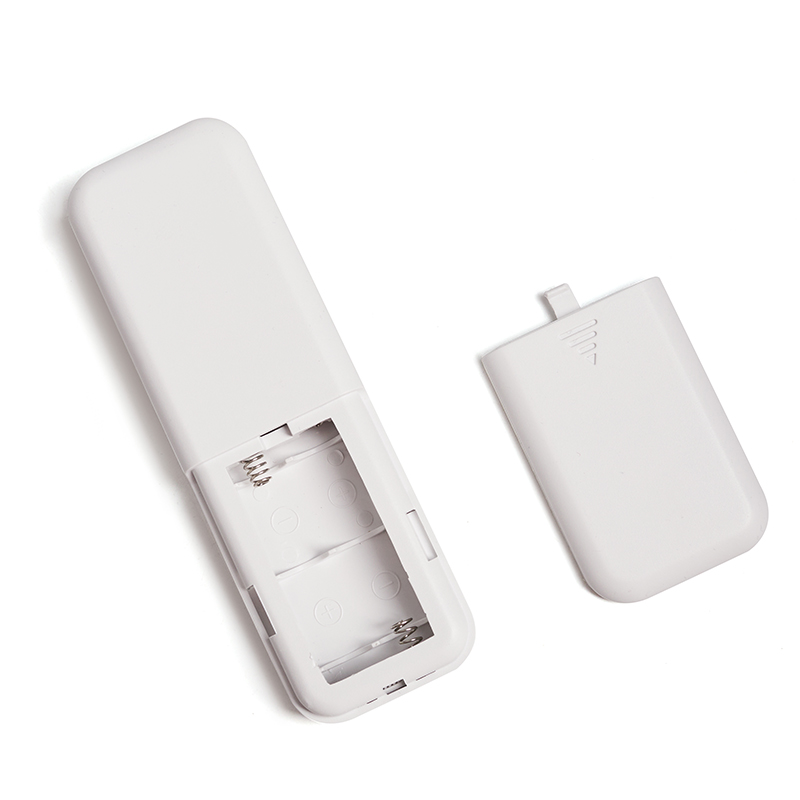

DT006B-3

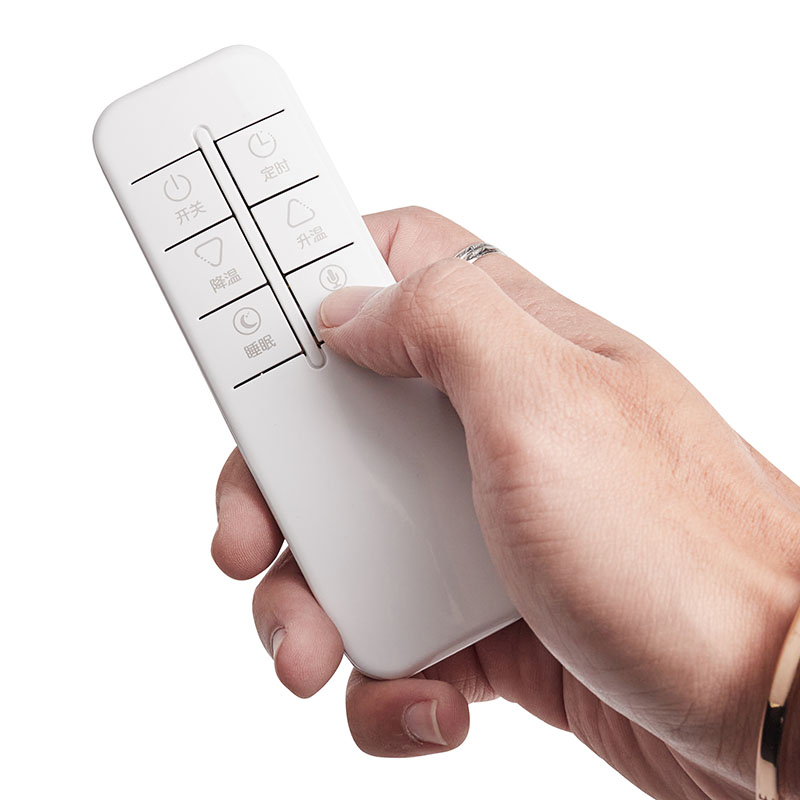

DT006B-4

DT010B

DT010B-2

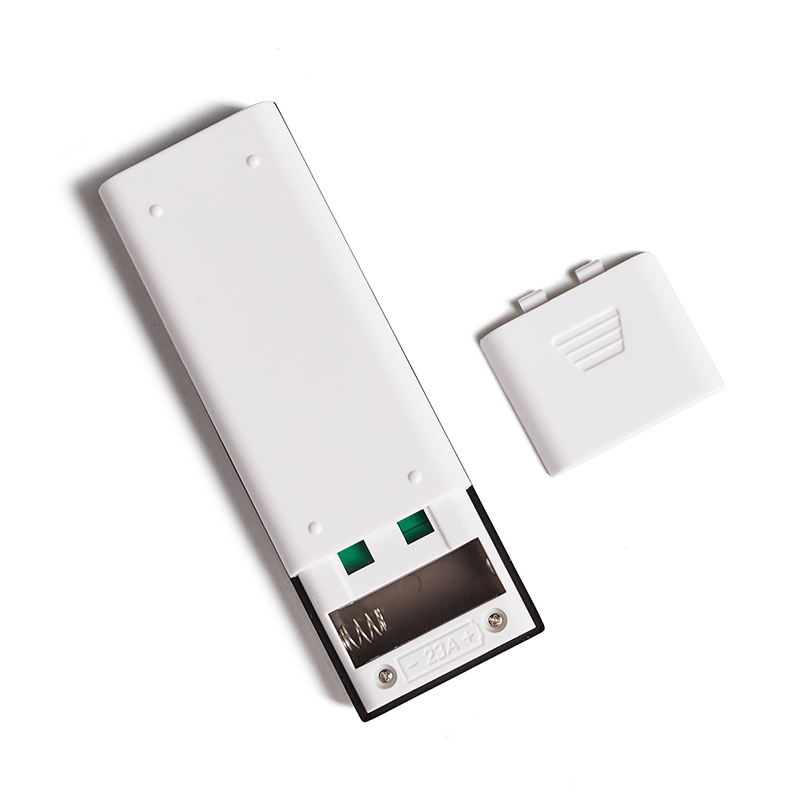

DT010B-3
DT010B-4

DT015G

DT015G-1

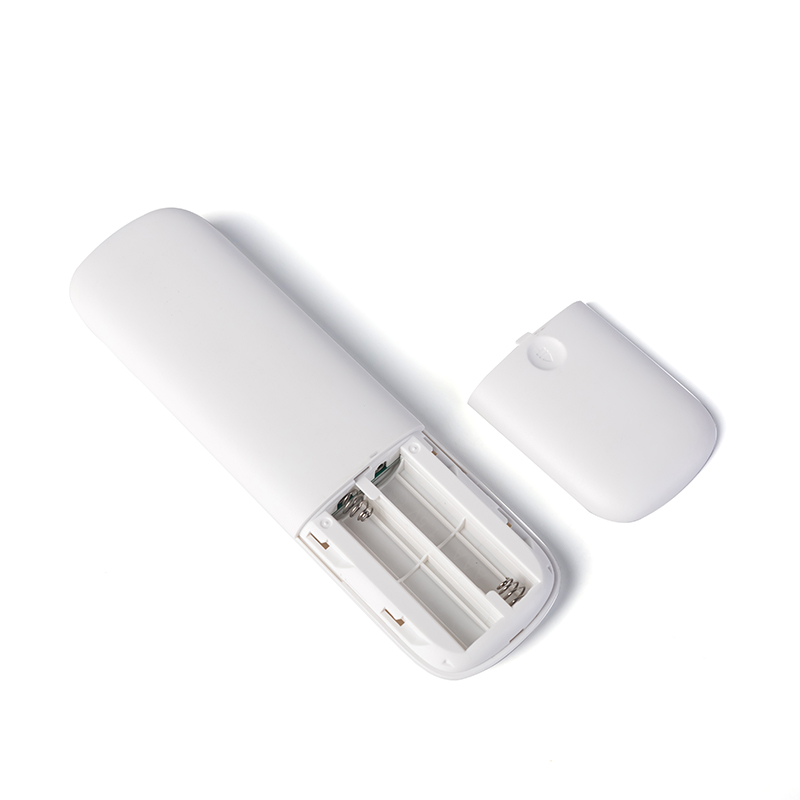

DT015G-2

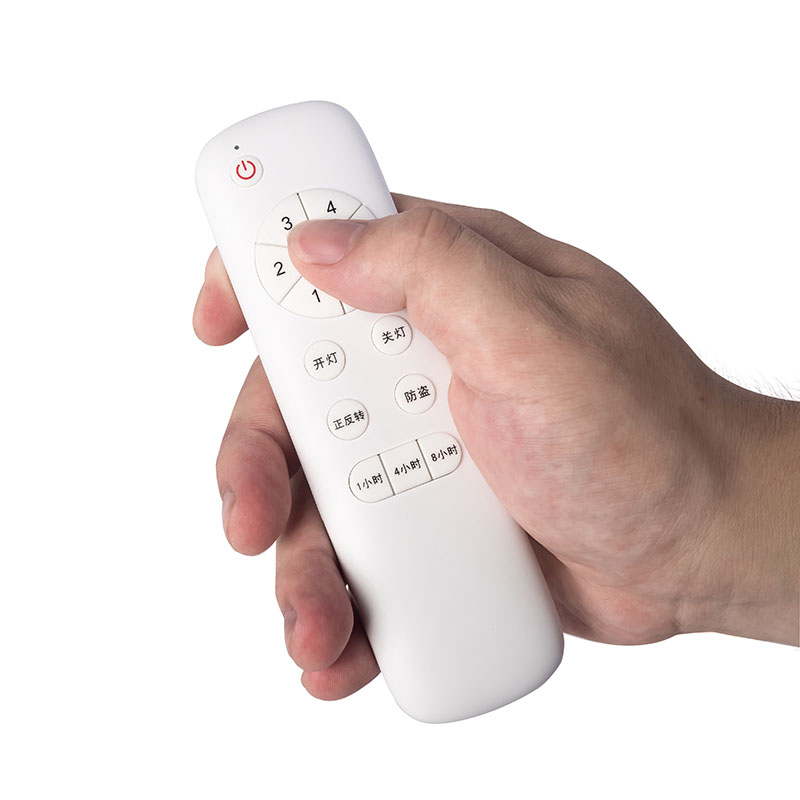

DT015G-3

DT017F

DT017F-1

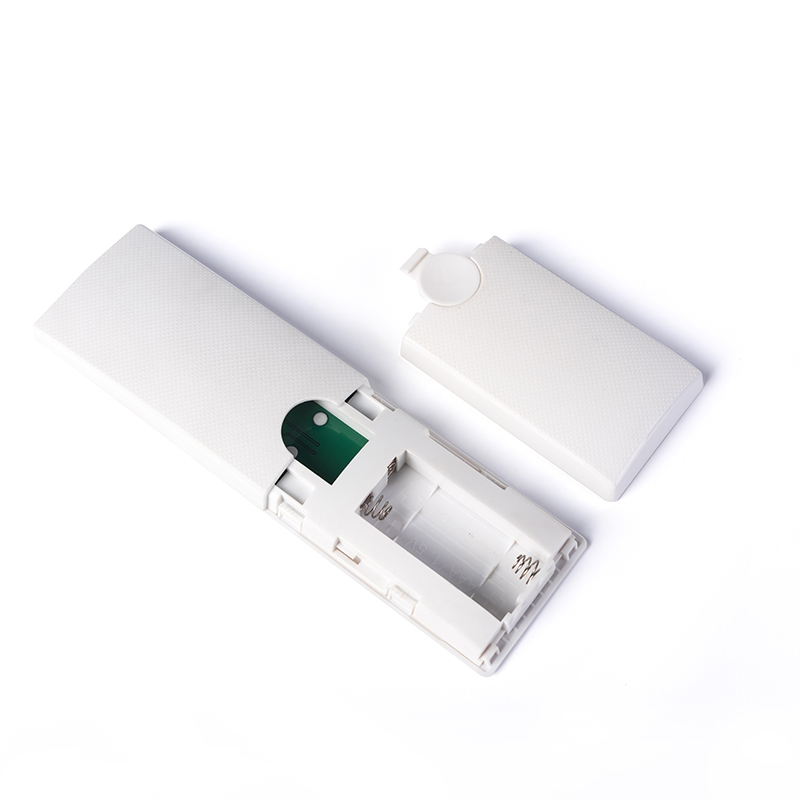

DT017F-2

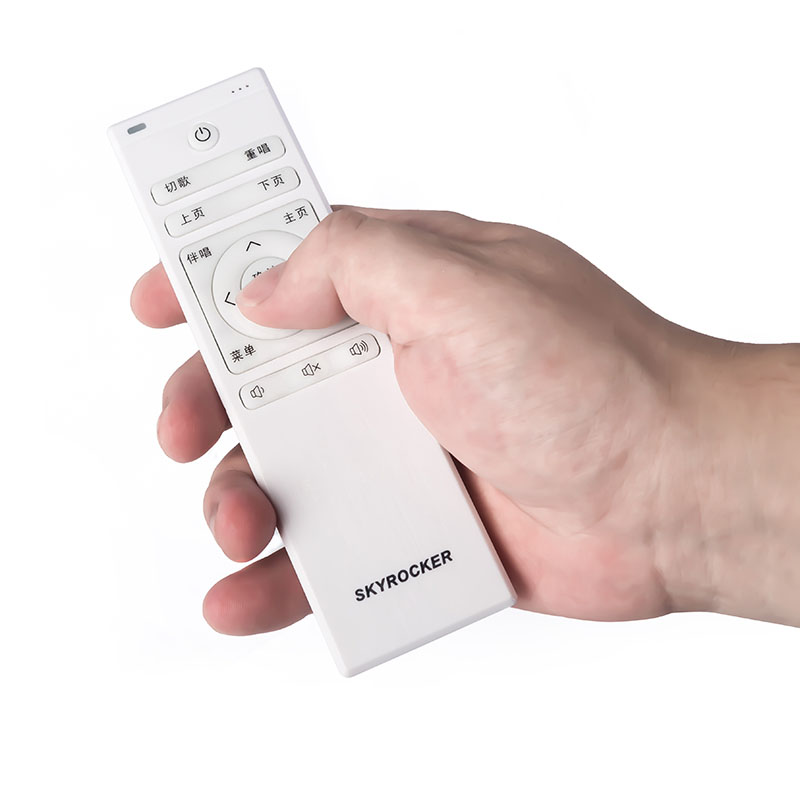

DT017F-3

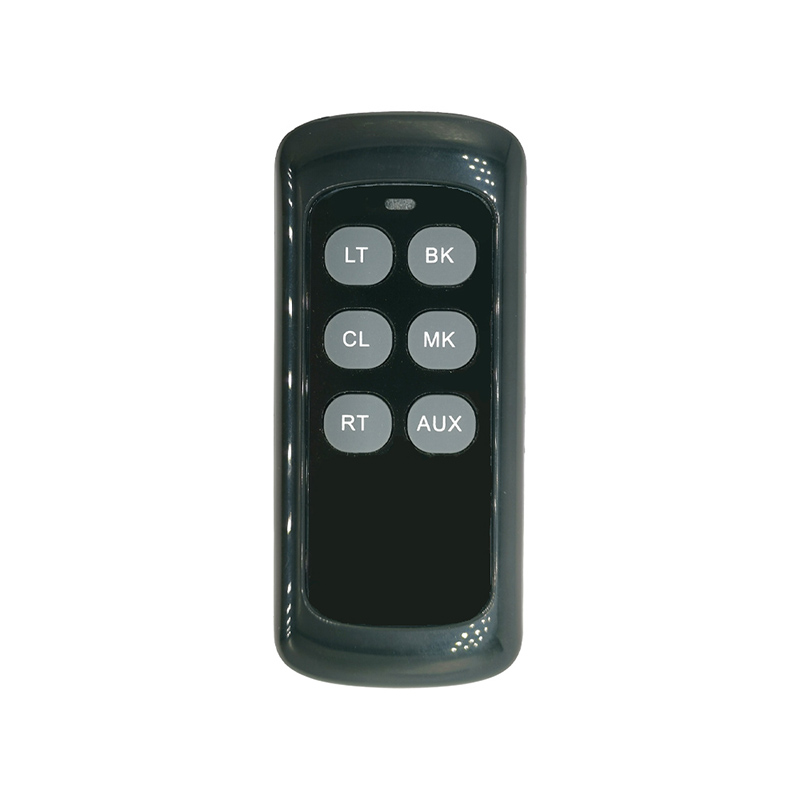

DT8889

DT8889
DT8889-2

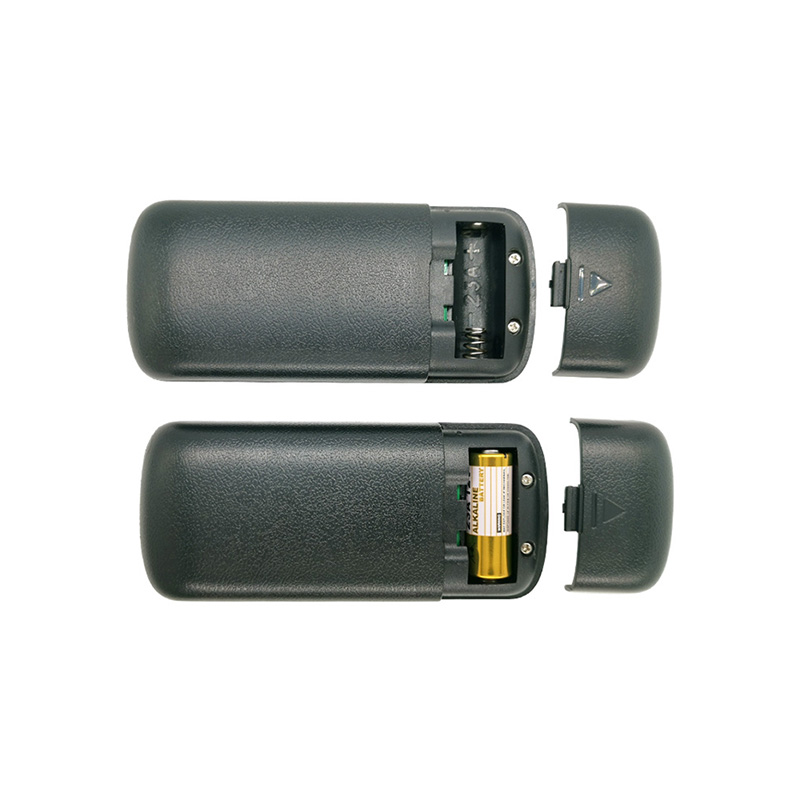

DT8889-3
